Detail

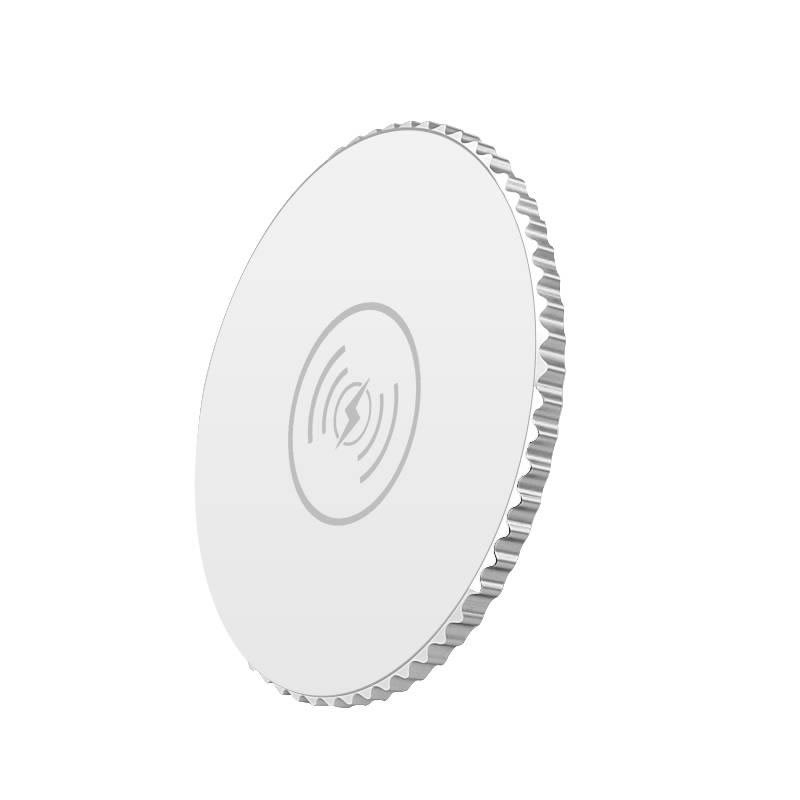

Universal Portable 10W 7.5W 5W Mobile Phone Charger Qi Wireless Charger HLQ-I3
Product Description
The scope of products
This wireless charger(I3) is a single coil fast charging launch module that comply to the Qi WPC V1.2.4 regulation. It can be applied to all kind of devices that in compliance with International Wireless Charger Qi Standard, such as smart phone,smart watch,three proofing products, etc..
I3 can supply power to adapters in 5V(not support fast charging), 9V(support fast charging) or QC 2.0 or above(Pls. Have usb cable with d+ / d- for fast charging).
I3 is applicable in places such as home, office,vehicle-mounted .
| Wireless charger - I3 | |
| Comply to the Qi WPC V1.2.4 regulation | |
| Adapter requirements: | 5V 2.0A, 9V 1.67A, QC2.0 or above adapter |
| Input voltage range: | 4.5V~5.5V or 8.5V~9.5V |
| Out put power rate of receiving end: | 5W, 7.5W,10W |
| Induction distance: | 3~10mm |
| Product measurement: | 0.243*0.277*0.011inch (74.3*84.5*3.4mm) |
| Product net weight: | 21g |
| Working frequency: | 110K~205K |
| Metal Detection/Foreign Body Detection (FOD) | |
| Conversion efficiency >75% | |
| Over current, over voltage, under voltage protection | |
| LED LIGHT INFORMATION: | |
| Standby mode: | Red light remains on |
| Charging mode: | Blue light in breathing mode |
| Charged mode: | Red light remains on |
| FOD or abnormal mode: | Blue light twinkles |
